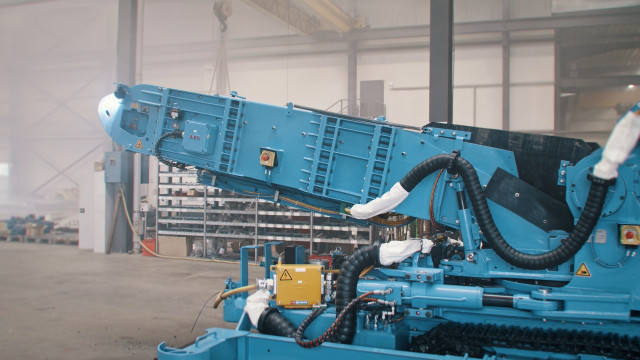

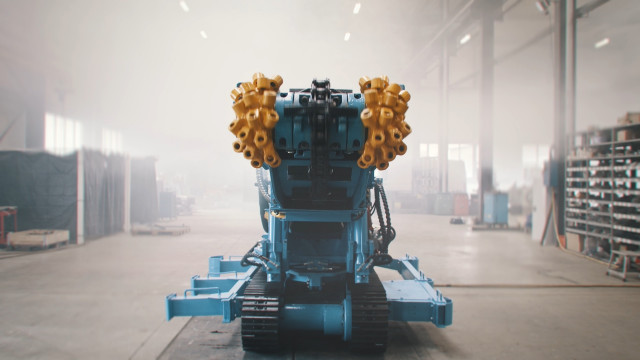

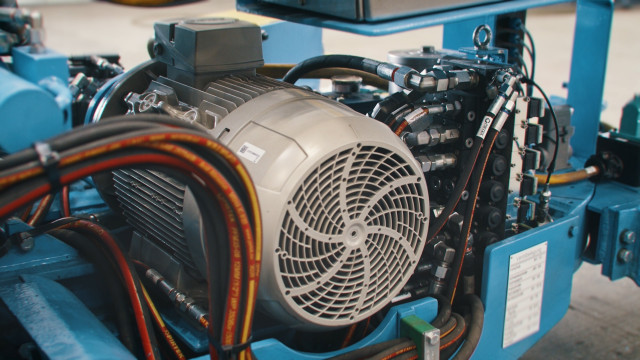

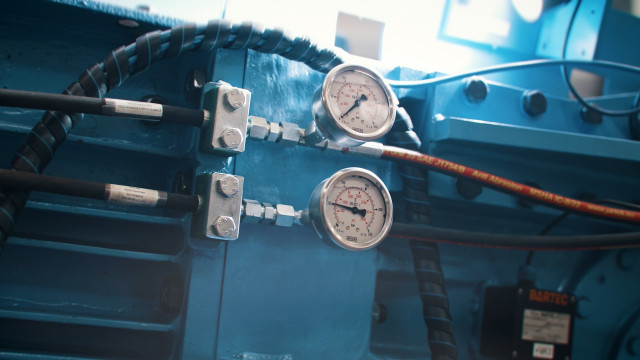

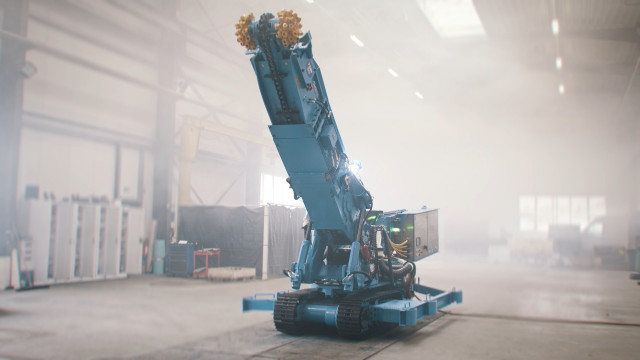

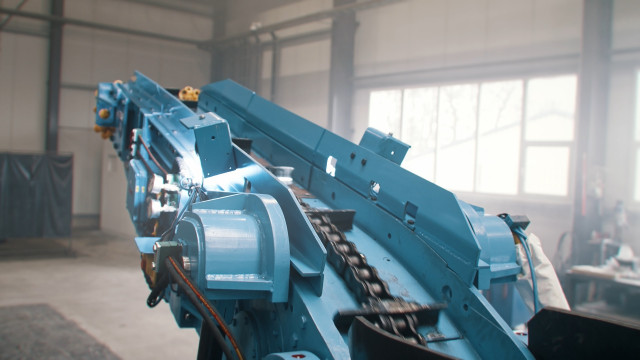

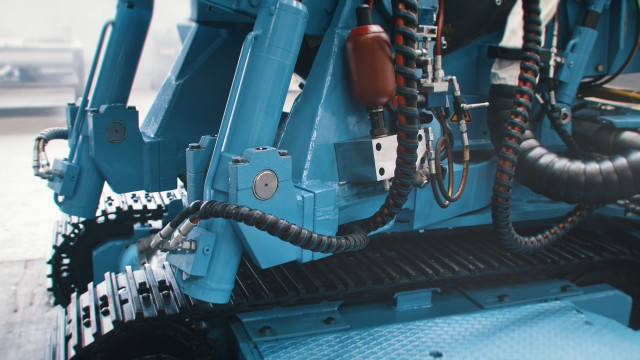

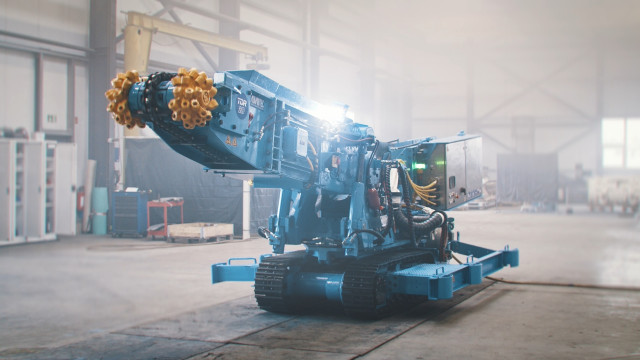

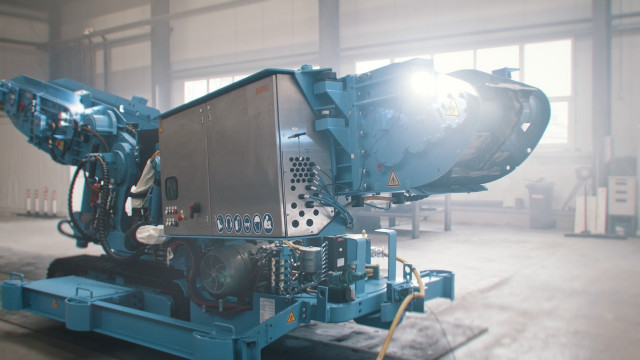

TDR 20

Small, but perfectly formed! This is precisely the TDR 20's strength, because even the tightest working area remains accessible to us.
With 50 kW cutting power and its narrow width of 1,200mm, it cuts at compressive strengths of up to 50 MPa. Additional accessories enable a wide range of uses.

Product information
Technical DataTDR 20
Weight~20 t
Cutting power50 kW
Total output83 kW
Machine length6.940 mm
Machine width Loading table min.1.200 mm
Machine height1.600 mm
Cutting height(max.) 3.810 mm
Cutting width(max.) 4.090 mm
Cutting cross section16 m
Cuttable rock strength50 Mpa
Width crawler track300 mm
Ground pressure10 N/cm
Undercut380 mm
Gradeability20 gon
