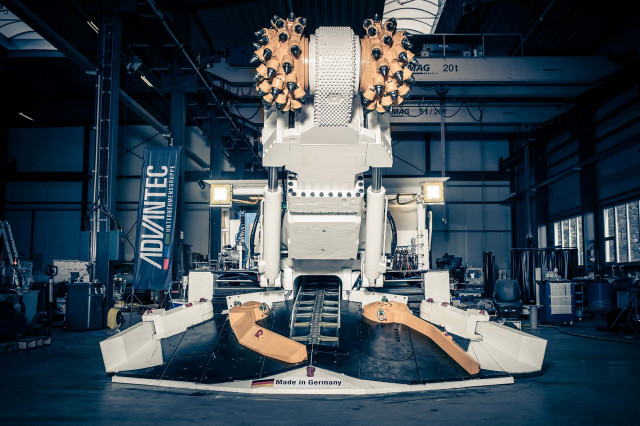

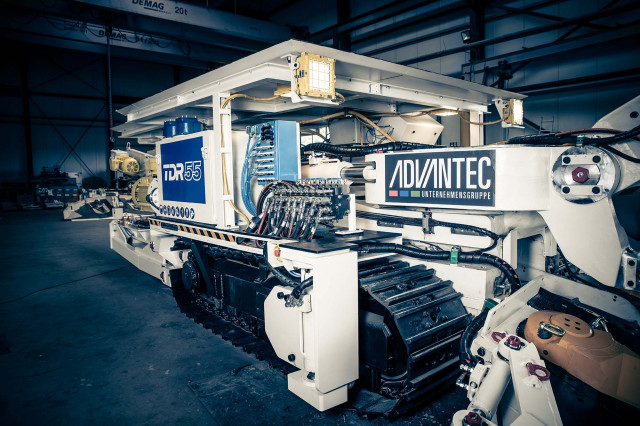

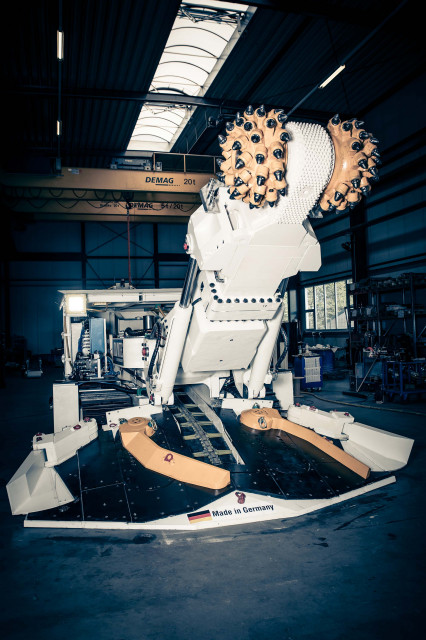

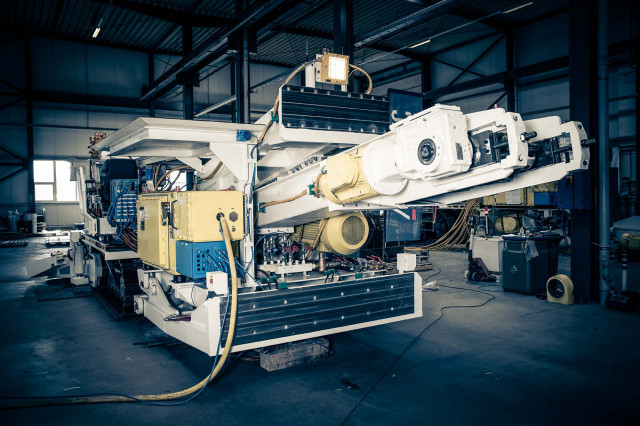

Our especially hardworking roadheader model. As well as its high power, the TDR 55's strength lies in its flexible potential applications, thanks to its numerous additional accessories.

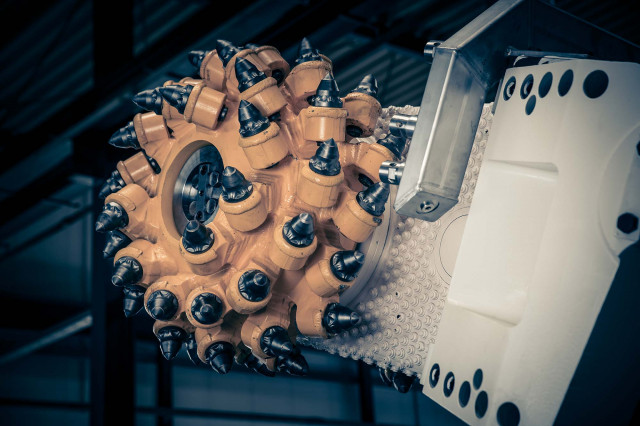

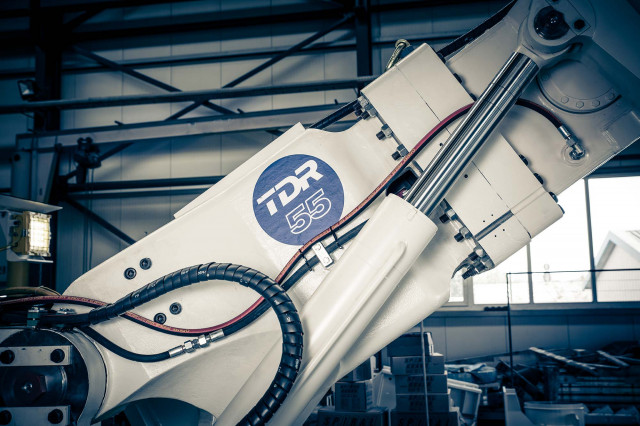

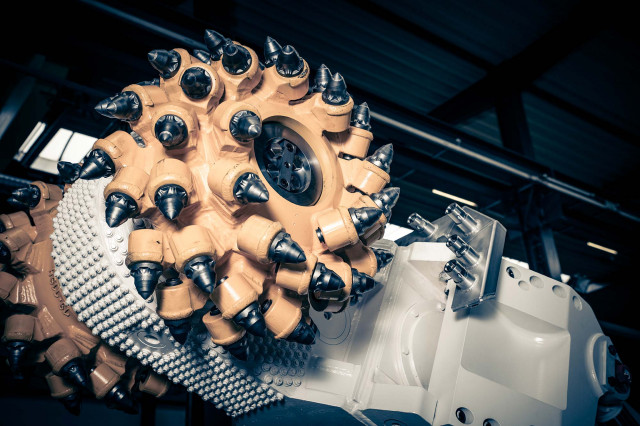

With 160 kW cutting power, it cuts at compressive strengths of up to 100 MPa. The cutting arm's feed is 400mm long. Additional accessories enable a wide range of uses.
|Technical data||TDR 55|
|cutting power||160 kW|
|total power||280 kW|
|cutting height||2.500 - 4.200 mm|
|cutting width||3,800 - 4,700 mm|
|machine length||11,600 mm|
|Machine width loading table min.||3,700 - 4,500 mm|
|Machine height||2,000 mm|
|cutting cross section||19.5 m²|
|Cuttable rock strength||100 Mpa|
|Cutting arm feed||400 mm|

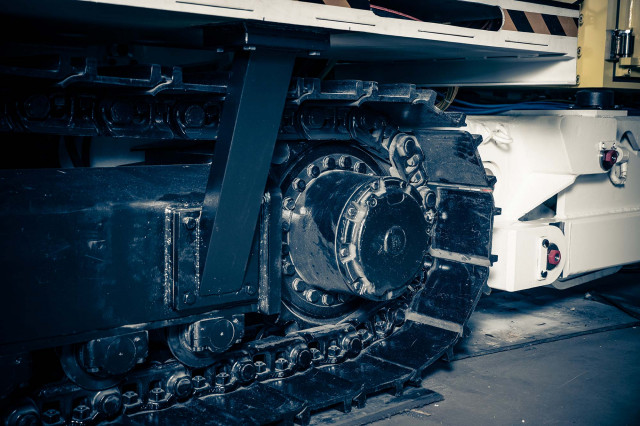

|Width of caterpillar track||600 mm|
|ground pressure||18 N/cm²|
