TDR 75

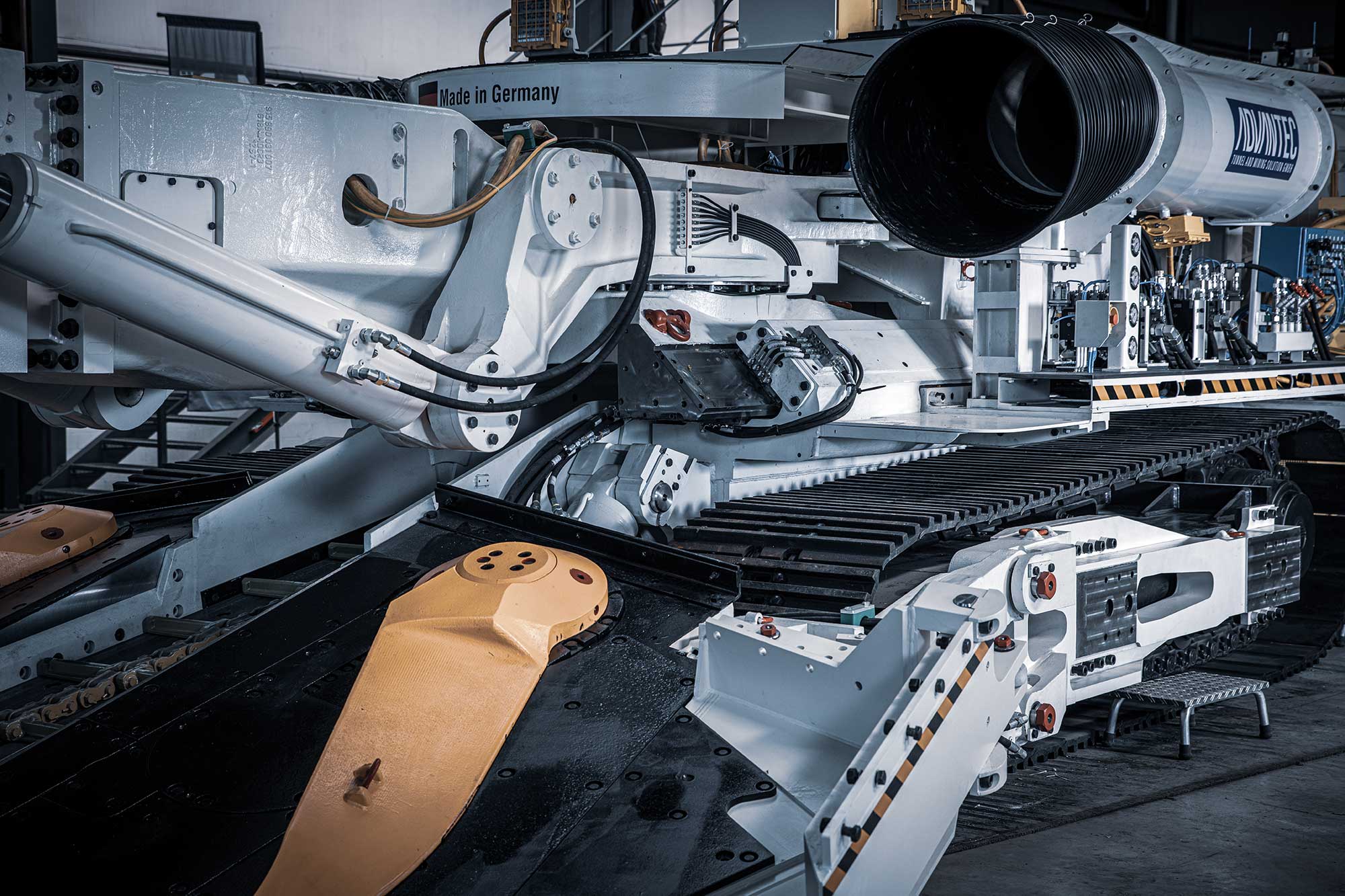

We not only think ahead, but in all directions. That's the reason why we have fitted our TDR 75 with an articulated boom. The result is a powerful helper for cutting tunnels and other large areas, but which also has a lot more to offer.
The TDR 75 has been designed for the economical exploitation of deposits in underground and opencast mines, and for safely cutting tunnels or other larger areas. The TDR 75's cutting arm is fitted with an articulated boom, boasts 300 kW drive power and enables intrusion cutting from a standing position.

Product information.
Technical dataTDR 75
Weight75 t
cutting power300 kW
total power437 kW
machine length15,500 mm
Machine width loading table min.4,200 mm
machine height3,440 mm
cutting height(max.) 6,300 / 7,200 mm
cutting width(max.) 8,550 / 8,860 mm
cutting cross-section58 / 68 m
Cuttable rock strength100* Mpa
Width of caterpillar track700 mm
Ground pressure16 N/cm
undercut1,100 mm
gradeability18 gon

*ADVANTEC TDR 75 is an electrically driven and tracked roadheader designed for cutting hard and abrasive rock with unconfined compressive strength (UCS) up to 100 MPa and in extreme cases even up to 155 MPa in tunneling applications.
